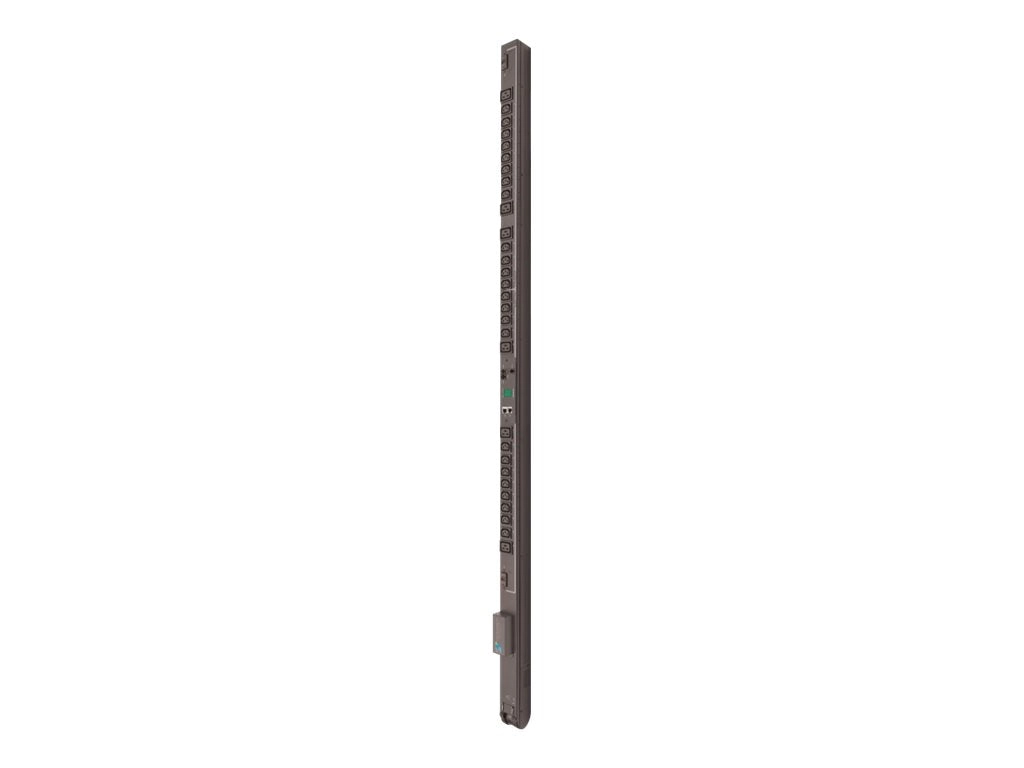

Server Technology PRO2 Switched CDU STV-4501K - Power distribution unit (rack-mountable) - AC 230 V - 7360 Watt - Ethernet 10/100, RS-232 - input: IEC 60309 32A - output connectors: 30 (power IEC 60320 C13, IEC 60320 C19) - 0U - 10 ft cord

• Network monitoring
  The PRO2 hot-swappable network card provides for HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
• Star multi-linking
  PRO2 provides the ability to link up to four power circuits using one IP address. Primary link provides backup power to network card.
• Hot-swap network card
  Network access is ensured when power is lost to the Master unit with backup power provided by the primary link unit.
• Outlet control
  On PRO2 Switched CDUs, cycle power to individual outlets or groups of outlets to reboot servers.
• Easy-to-read LEDs display
  Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets.
• Power Pivot
  The 90 degree rotatable power cord allows for standardized deployment at any facility no matter where power must be routed.
• ST Eye Bluetooth ready
  The best CDU LCD is the one in your hand. Attach the ST Eye Bluetooth module to PRO2 for access to power data and system settings.
• Branch circuit protection
  PRO2 meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL489 rated magnetic-hydraulic circuit breakers.
• Branch current monitoring
  PRO2 monitors current at each breaker branch and provides SNMP-based alerts and e-mails on high usage that risks a tripped circuit.
• High temperature rating
  This product has been tested and approved for safe and reliable operation in 60°C (140°F) data center environments.

The Server Technology PRO2 Switched CDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input.

• Network monitoring
• Star multi-linking
• Hot-swap network card
• Outlet control
• Easy-to-read LEDs display
• Power Pivot
• ST Eye Bluetooth ready
• Branch circuit protection
• Branch current monitoring
• High temperature rating
